Bambu 4-in-1 PTFE Adapter

Instructions for use

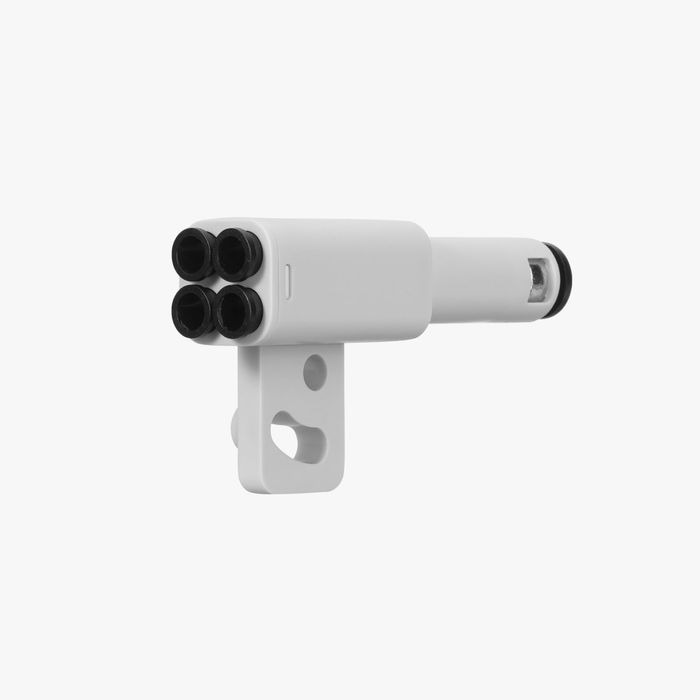

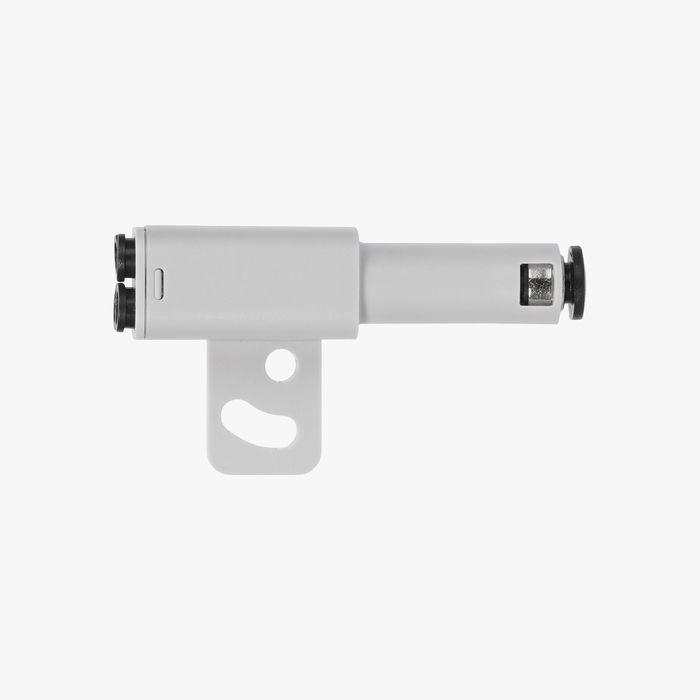

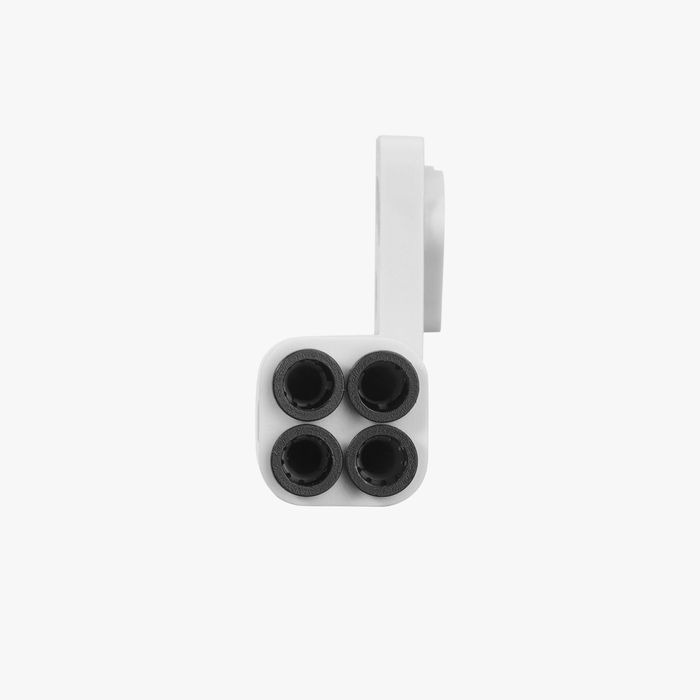

The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.

1. When using AMS:

– Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
– Connect the PTFE tube from the buffer output to one of its IN ends. – Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

2. When the AMS is not being used:

– Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
– Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.





Product Specification

Color	Black, White	Materials	Plastic, Metal
Package weight	0.03 kg	Package Size	60*60*30 mm
